DLE65 65CC Single Cylinder 2-stroke Side Exhaust Air Cooled Gasoline Engine for RC Airplane Model

Sold out
Original price $594.99 - Original price $594.99
Original price
$594.99
$594.99 - $594.99
Current price $594.99

Holiday Deals: Get Extra 12% Off with Coupon Code:HD12

Join Our FacebookGroup & Get Extra Discount!

Build Your Own MOC Engine Bricks & Save Up to $200 OFF!

SKU 33ED3075973

1. Free Shipping Of All /Return guarantee /Payment secure.

2. Please contact us for Wholesale.

  • American Express
  • Apple Pay
  • Mastercard
  • PayPal
  • Visa
Features:

.This product is a single-cylinder two-stroke side exhaust air-cooled hand-started gasoline engine, suitable for aircraft models, and can provide flight power. The unique structural design and exquisite craftsmanship make the engine light in weight, long life, high horsepower, low vibration, easy to start, and outstanding performance. The newly designed DLE engine will bring you an unprecedented flying experience.
.Tips: This engine is not a toy. Please pay special attention to safety. We will not be responsible for all safety issues caused by this engine; in order to better use this product, please read the manual carefully before using it. Each engine has undergone preliminary adjustments before leaving the factory and can be used directly by users. However, the altitude of each area will affect the normal operation of the carburetor, and the carburetor oil needle may need to be fine-tuned to achieve the best working position. See the manual for details of engine adjustment and maintenance.
.Safety Instructions: (1) Please carefully check the propeller, engine frame and other relevant parts before use to ensure that the screws and nuts are not loose. It is best to use thread glue (such as: LOCTITTE 242) to fix the screws and nuts during installation. (2) Note: If you want to run-in or test the engine on the test bench, you must have a good damping device, otherwise it may cause damage to some parts of the engine. It is best to install the engine on the airplane for running-in. (3) When the engine is running, no one is allowed to be in front of the propeller rotation plane.
.The use of this engine requires a certain technical content, and novices are recommended to use it under the guidance of professionals. We will provide high-quality and professional after-sales service. If you encounter any problems during use, please contact us in time. All DLE engine accessories are also sold.
.For Ages: 14+

Specifications:

.Color: As Shown
.Material: Metal
.Performance: 6.5HP/7500rpm
.Idle Speed: 1400rmp/min
.13.7kg Static Thrust / 1800m Altitude
.16kg Static Thrust /100m Altitude
.Applicable Propeller Specifications: 23x10 24x8 24x9 24x10
.Applicable Spark Plug Model: DLE CM6
.Displacement: 65cm³
.Bore x Stroke: 47mm×37.5mm
.Compression Ratio: 9.2:1
.Lubrication Ratio: 30:1
.Engine Weight: 1450g
.Exhaust Pipe Weight: 170g
.Igniter Weight: 130g
.Ignition Voltage: 4.8V-12V
.Product Weight: 1750g
.Package Dimensions: 30 x 25 x 15cm
.Package Weight: 2350g
.Packing: Box

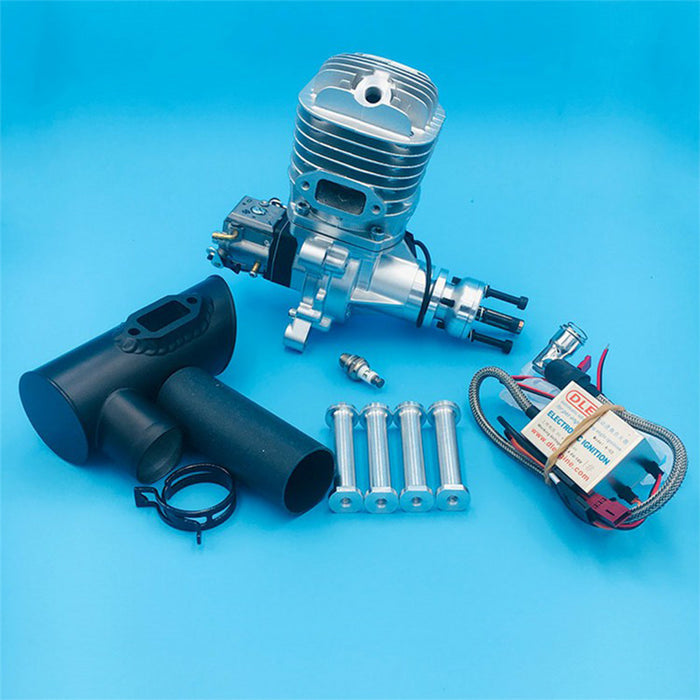

Package Content:

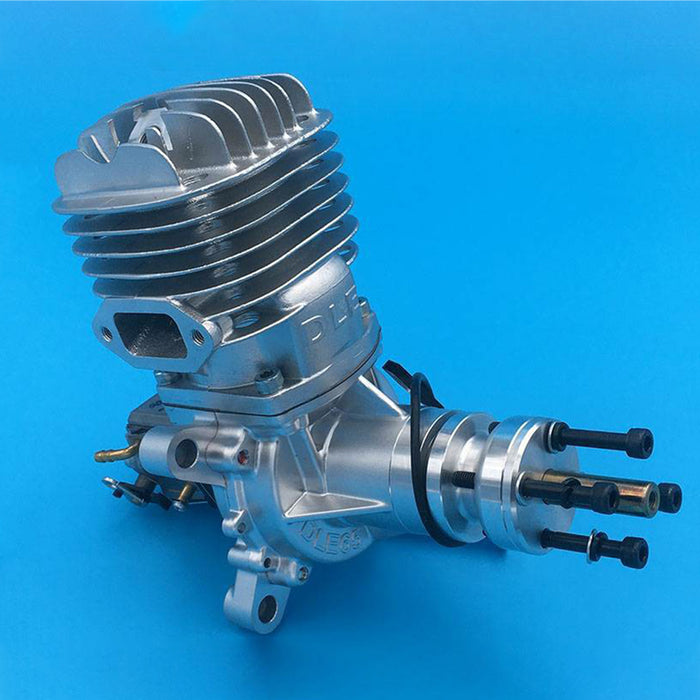

.1 x Engine
.1 x Carburetor

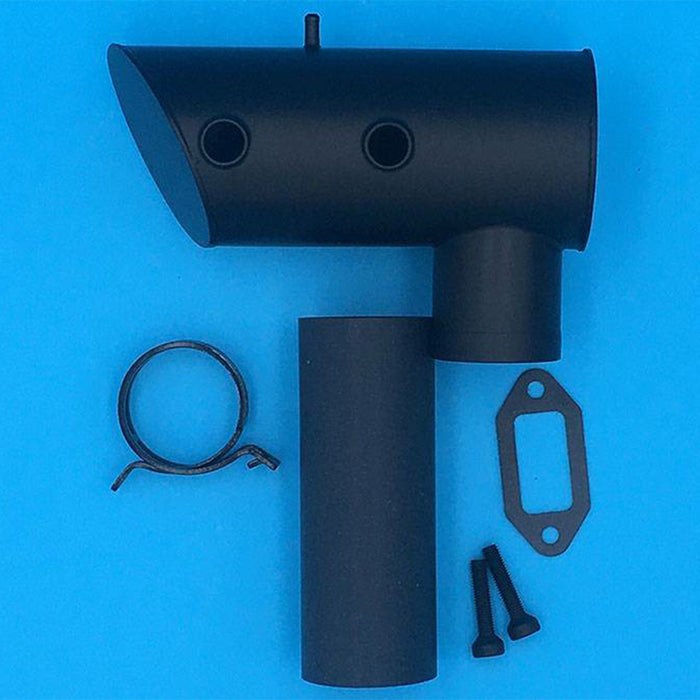

.1 x Exhaust Pipe Set

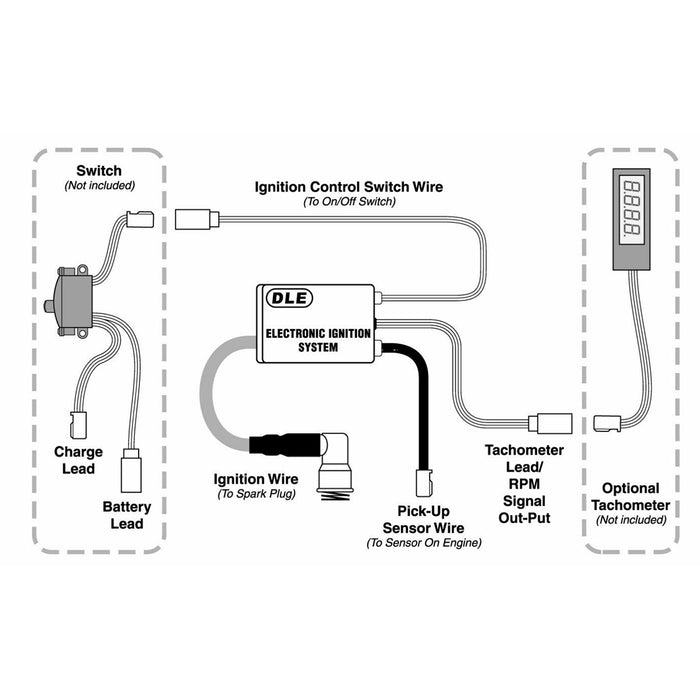

.1 x Igniter Set
.1 x Manual
